Load testing with WAPTpro

Load testing is one of several different kinds of Performance related tests (Load Testing, Stress Testing, Spike testing, Endurance testing, Scalability Testing, Volume testing). In a sense of usage all of them are related to Performance Testing definition, which in one sentence, would be:

“Performance Testing is artificially creating or simulating load and measuring how your environment handles it.”

Load testing provides system monitoring by increasing the load. You can test how the system performs under higher load, but also under base or expected load. During Load Tests you can monitor response times, throughput, server condition and much more.

The goal of Load Testing is not to break the target environment, but to measure performance parameters under high load.

WAPTpro

WAPTpro is one of several Load testing tools that can be used for this purpose. It provides interface for testing performance parameters of a websites and web-based internet applications.

Create Scenario

To perform Load testing for a website with WAPTpro, first you need to create a test Scenario with general parameters for the test: number of virtual users, type of load, test duration or the total number of sessions for all virtual users. This can be obtained in Scenario Wizard that you can open by click on a New button in a upper left corner of the WAPTpro window. Later, these settings can be changed by clicking on a Test Volume menu item in a left section of WAPTpro window.

Cucumber in Web testing (part 8 of 8)

8. Keyword “Examples” and conclusion



Gherkin keyword: Examples

Cucumber provides another useful Gherkin keyword which is used scenario parametrization. A scenario with an “Example” keyword will be executed multiple times with different parameters. Here is an instance:

@init @logout
  Scenario Outline: Successful Login with Valid Credentials
    Given User is on Home Page
    When User Navigate to LogIn Page
    And User enters username "<userName>"
    And User enters password "<password>"
    And Click login
    Then Message displayed Login Successfully


Examples:
| userName | password |
| username1 | password 1 |
| invalid | invalid |

Cucumber in Web testing (part 7 of 8)

7. Hooks



Cucumber provides a methodology called Hooks which is analogue to traditional before and after methods. The hooks must be annotated with @Before and @After in step classes. Make sure to use cucumber.api.java.Before and cucumber.api.java.After annotations and not the JUnit ones. By default each before method will be executed before all scenarios and each after method will be executed after all scenarios. If a hook needs to be executed only for a particular scenario, then we need to use tags. To tag a before method, we need to insert a string parameter to the annotation. To bind the tagged hook to a particular scenario we need to “annotate” the scenario with the same string tag. Here is an example:

@Before("@login")
	public void login() throws Throwable{
		openDriver();
		System.out.println("login()");
		testSteps.user_is_on_Home_Page();
		testSteps.user_Navigate_to_LogIn_Page();
		testSteps.user_enters_UserName("Tester843");
		testSteps.user_enters_Password("x%kzJwbsW1)AIB2k");
		testSteps.click_login();
		testSteps.message_displayed_Login_Successfully();
	}
@After("@close")
	public void close_driver() throws Throwable {
		System.out.println("close_driver()");
		baseObject.driver.close();
	}

@login @close
 Scenario: Successful LogOut
    When User LogOut from the Application
    Then Message displayed LogOut Successfully

Cucumber in Web testing (part 6 of 8)

6. Page flow



Page flow is a widely used pattern in web testing which describes how we should use our page objects to write more readable and well designed code. What page flow telling us, is that in our test code every Page Object method which navigates from one page to another should return a new Page Object. The following actions in the test code will be executed by calling methods from the newly returned Page Object. Here is an example:

Sample code - Password change


The benefits of this pattern are:

  1. Easier to write test code. The Page Object methods reveals which page will be the next the method execution.
  2. Improving test code readability
  3. We got additional verifications, because each page object extends the Selenium’s LoadableComponent class. When we are creating a new instance of a PageObject the isLoaded() method will be executed, which contains validations against must displayed elements on the page.

Cucumber in Web testing (part 5 of 8)

5. Web testing project structure



Structure without cucumber

The following picture represents our basic structure what we use for web testing:


TestBase contains the initialization and termination of a Selenium Webdriver. It usually contains a before() and after() method where we start and close web browser. In addition to this we setting up desired capabilities if needed.


Can Chrome DevTools’ Device Mode be substitute for the Real device?

Every tester probably heard about Chrome Device Mode, if you didn’t, don’t worry, we will try to introduce you with it.

Open the Chrome DevTools and Toggle the Device Mode button Device Mode to turn Device Mode on or off. Device Mode will emulate your site across different screen sizes and resolutions. In Viewport Controls you can change the device for emulation or you can make your own custom device presets.

ViewportControls
It’s a very simple tool and easy to use, but if you need more details check out Google’s directions.

Make your manual testing faster with Vysor

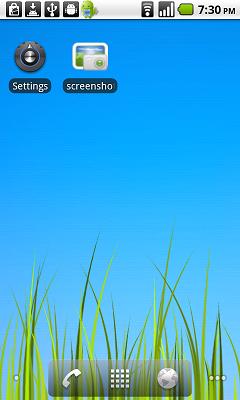

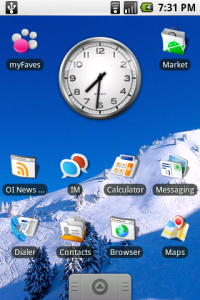

Testing Android devices can be frustrating. Entering long texts, taking screenshots and screen recordings, transferring files from the Android device to PC, losing time just with putting down – picking up the deviceScreen capture from Vysor. All these things can be forgotten if You could use the Android device on your PC.

There are many apps available for screen mirroring and Vysor is one of them. Vysor is a Chrome extension developed by ClockworkMod. Because it’s a Chrome extension it is compatible with almost all operating system and devices. Vysor works using ADB (Android Debug Bridge). The Chrome app automatically detects any ADB-enabled device connected to the computer. With a few simple steps the phone or tablet screen will be available on the PC with full control over it. It has a free and a paid version. Free version, with screen mirroring and screenshotting, is probably enough for most of the users. If you want some more functionalities like higher quality mirroring, fullscreen mode, sharing, drag and drop option, paid version is for you.



How to set up Vysor?

Cucumber in Web testing (part 4 of 8)

4. TestRunner and Test steps

To run features we need a Java class to start the test run. Here is a simple example:

package cucumberTest;

import org.junit.runner.RunWith;

import cucumber.api.CucumberOptions;
import cucumber.api.junit.Cucumber;

@RunWith(Cucumber.class)
@CucumberOptions(
features = "Feature",
dryRun = true
)

public class TestRunner {

}

The TestRunner class needs to be annotated with @RunWith(Cucumber.class) and a body of it can be totally empty. By annotating the class with @CucumberOptions we can specify extra options to our test run. In this case, we used the annotation to specify the location of the feature file and to set the test run to ‘dry’. Running the test in ‘dry’ mode means that cucumber will not execute the test steps, rather it will just check for test steps implementations. For the previously given feature, we got this output on the console.

How to check presence of an element when it disappears in less than 500ms

It can happen that the element you want to check only appears for a fraction of a second. This can produce false failures when the element appears in between the standard 500ms when WebDriver checks the wait condition. What you can do is to set up a FluentWait object with a specific polling time. It works almost the same as other kinds of wait functions in WebDriver.

The code is the following:



	Wait<WebDriver> wait = new FluentWait<WebDriver>(driver)
				.withTimeout(20, java.util.concurrent.TimeUnit.SECONDS)
				.pollingEvery(200, java.util.concurrent.TimeUnit.MILLISECONDS)
				.ignoring(NoSuchElementException.class);

		Function<WebDriver, WebElement> function = new Function<WebDriver, WebElement>() {

			@Override
			public WebElement apply(WebDriver driver) {
				return driver.findElement(exportSnackbarCss);
			}
		};

		wait.until(function);

Cucumber in Web testing (part 3 of 8)

3. Cucumber features

“Feature” in cucumber is supposed to describe a single feature which is analog with “test group”/”test class” in standard Java world. A feature includes one or more scenarios. A scenario can be represented as a “test case” or a ”test method“ in standard Java world. The code of a cucumber feature need to be placed in a file with “.feature” extension and must be located in a separated folder on the project root.
Creating a new feature file with the previously installed eclipse extension will include a small legend and a simple template for the feature file.

Most important Gherkin keywords are:
